Pressure reducing valve

€183.87*

Available in 1 Tag

Product number: SW10028

Product information "Pressure reducing valve"

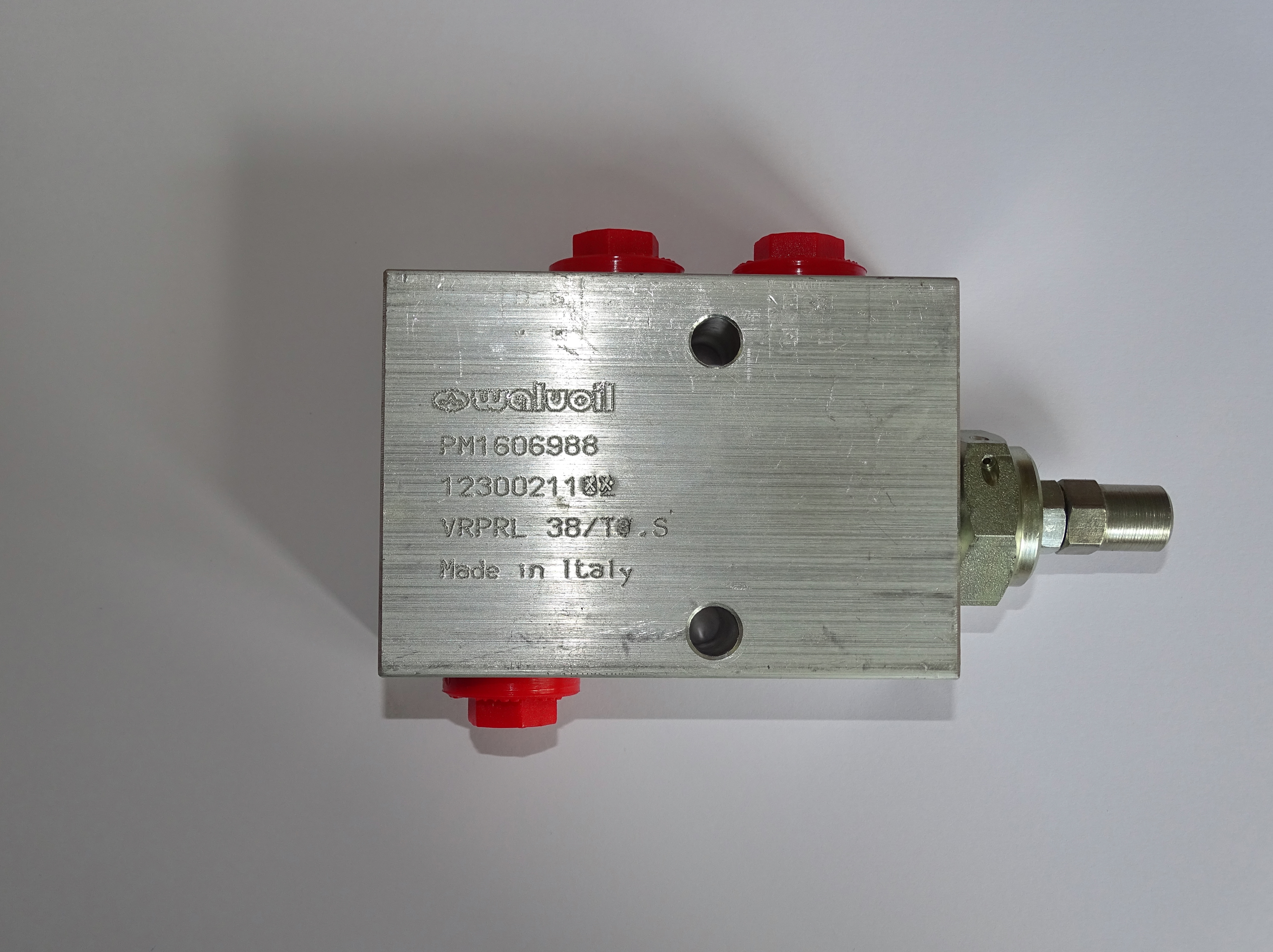

Pressure reducing valve

Functionality

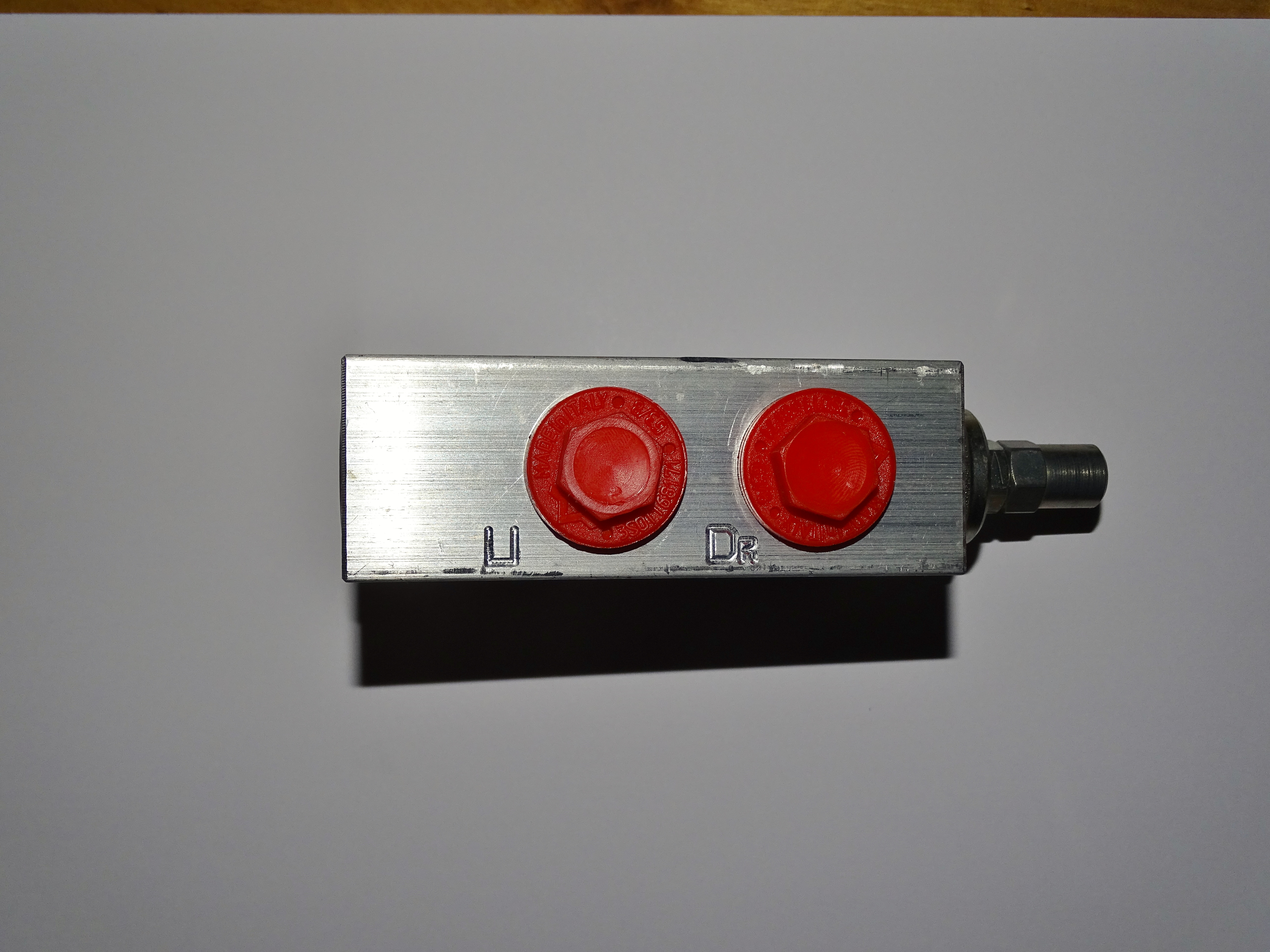

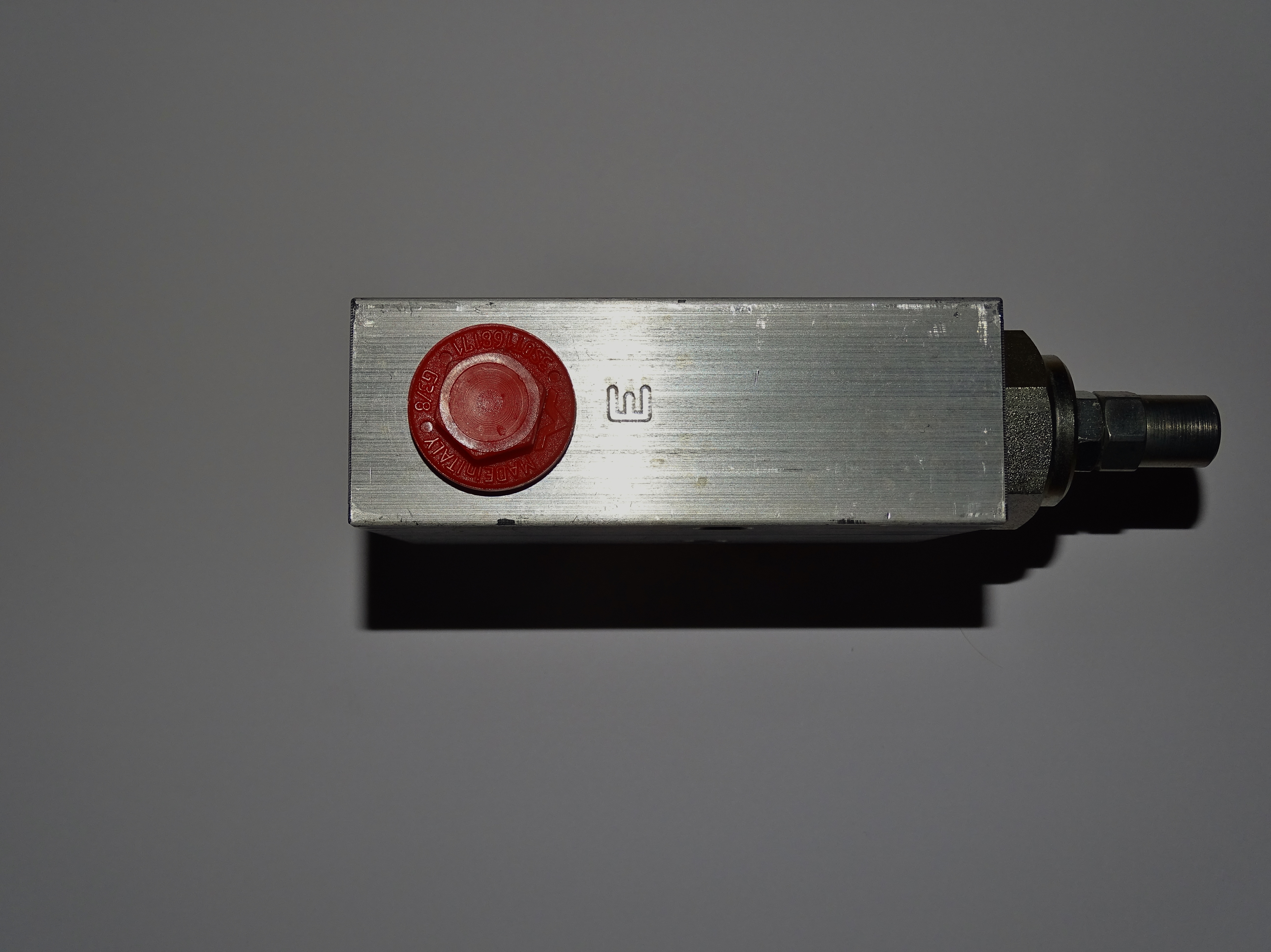

Once the pressure in 'U' is reached, the valve blocks the passage between 'E' and 'U' to keep the pressure 'U' constant.If the pressure in 'U' is exceeded, it can be relieved via 'Dr'. This does not influence the upstream pressure in 'E'.

Since it is a single-acting valve, it allows a free oil return from 'U' to 'E'

Adjustment range from 5 to 50 bar.

Connections: G3/8"

The pressure reducing valve is used to adjust the pressure on the swing cylinder.
